$68001-5 Piece/Pieces
$67306-9 Piece/Pieces
$6750≥10Piece/Pieces
| Jenis pembayaran: | D/A,D/P,T/T,Western Union |
| Inkoterm: | FOB |
| Transportasi: | Ocean,Land |
| Pelabuhan: | SHANGHAI,TIANJING,QINGDAO |
Merek: Lundi
Industri Yang Berlaku: Toko Bahan Bangunan, Pabrik Pabrikan, Penggunaan Rumah, Lainnya, Hotel, Toko Garmen, Toko Bahan Bangunan, Bengkel Mesin, Pabrik Manufaktur, Peternakan, Penggunaan Rumah, Eceran, Energi & Pertambangan, Toko Makanan & Minuman, Perusahaan periklanan
Lokasi Showroom: Tidak ada
Kondisi: Baru
Nama Merk: Lundi
Power Souce: MOTOR
Jaminan: 1 tahun
Laporan Tes Mesin: Asalkan
Video Keluar-inspeksi: Asalkan
Garansi Komponen Inti: Lainnya
Komponen Inti: Motor, Bejana tekan, lain, Bantalan, Gigi, Pompa, Gearbox, Mesin
Model: CPD-S15
Mode Drive: Listrik
Mode Mengemudi: Listrik
Berat (dengan Baterai): 1855
Tinggi Angkat: 3500
Panjang Keseluruhan: 3100
Lebar Keseluruhan: 880
Sistem Kontrol Pengemudi: Ac
Setelah Layanan Garansi: Dukungan online
Lokasi Layanan Lokal: Tidak ada
Layanan Purna Jual Disediakan: Dukungan online
Layanan Di Luar Garansi: Dukungan teknis video
Status: Baru
Tempat Asal: Cina, Jiangsu, Cina
Sumber Daya Listrik: Motor AC
Masa Garansi: 1 tahun
Laporan Uji Mekanis: Disediakan
Inspeksi Pabrik Video: Disediakan
Jenis Pemasaran: Produk Biasa
Masa Garansi Komponen Inti: 1 tahun
Lebar Garpu: 200-660
Sertifikasi: Ce
| Menjual unit | : | Piece/Pieces |
| Tipe paket | : | Film yang dibungkus, ekspor palet standar atau kotak kayu. Metode pengemasan spesifik dapat dibahas. |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

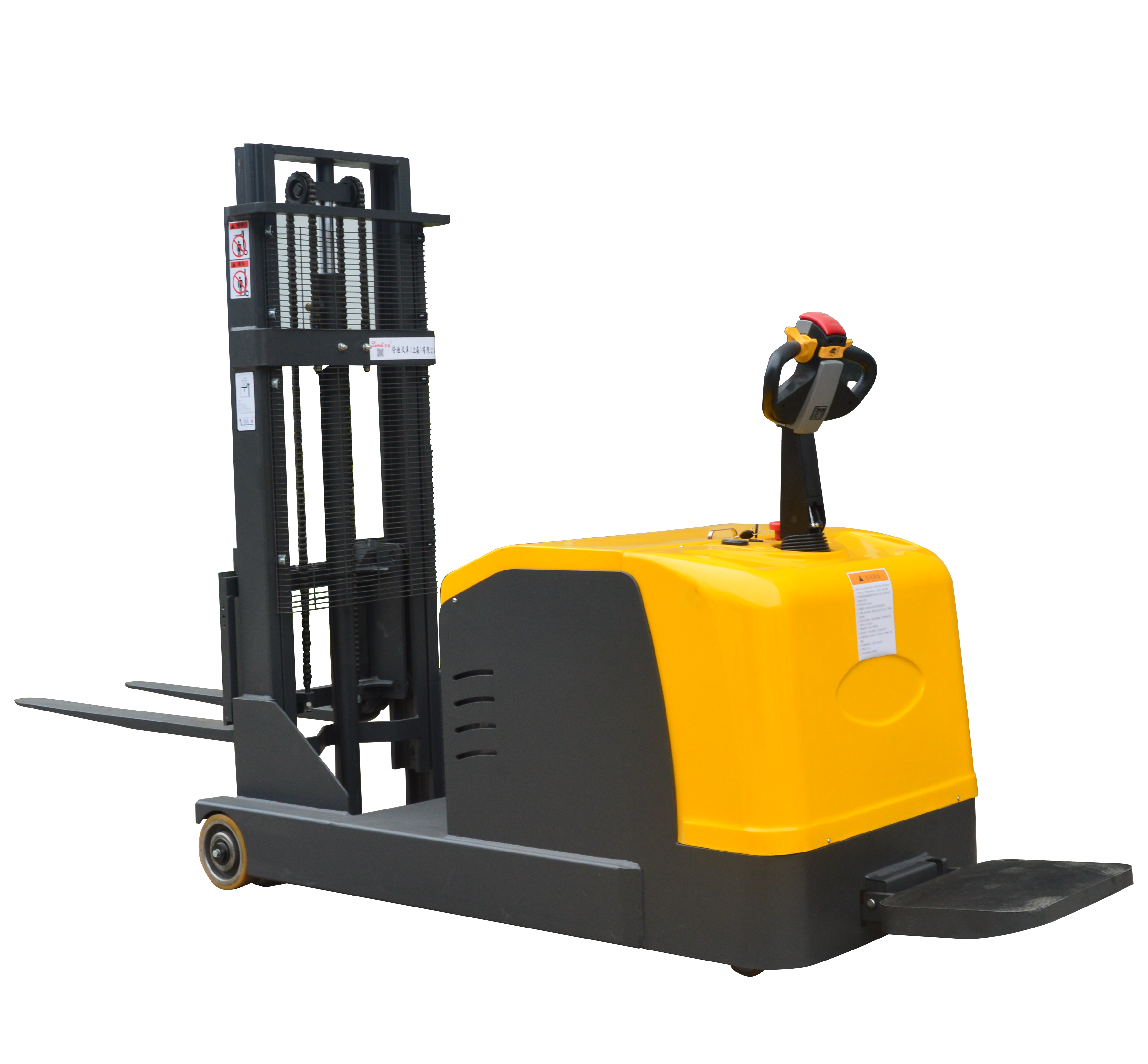

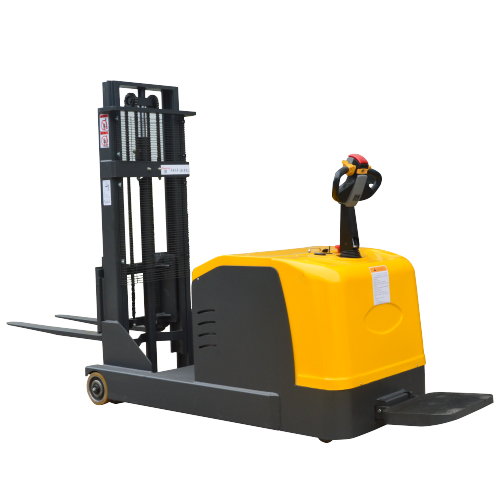

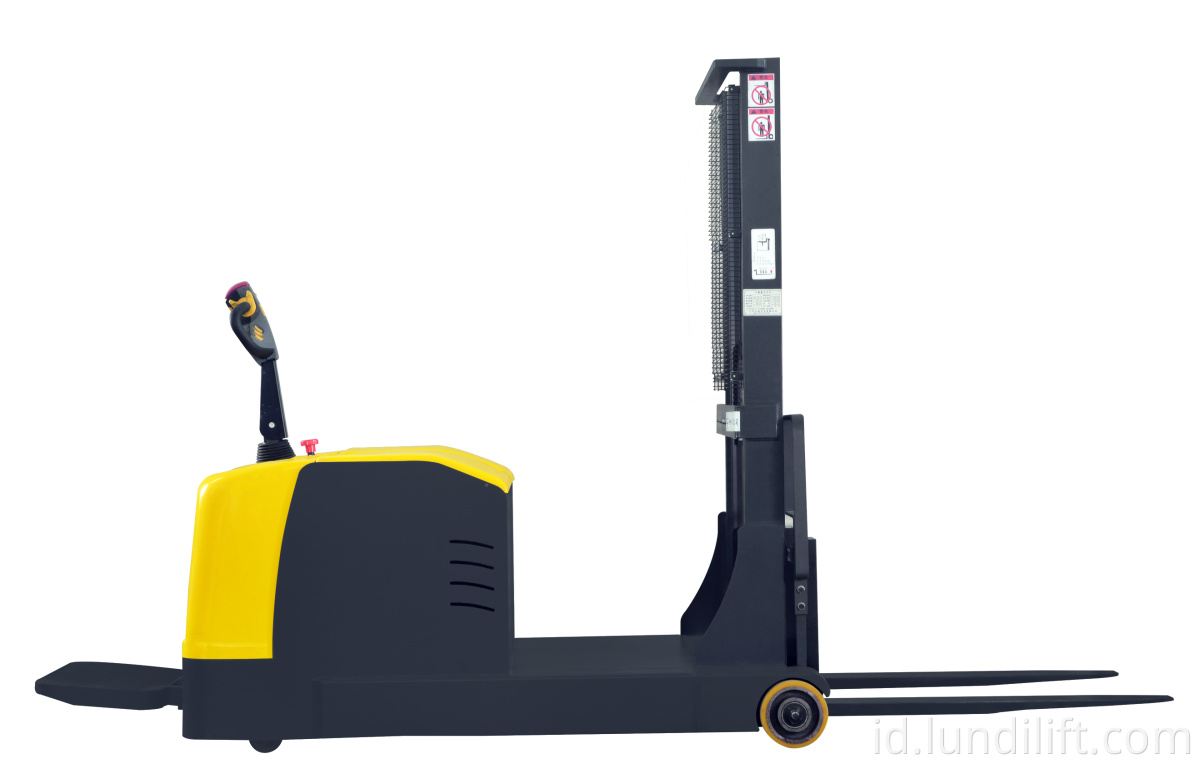

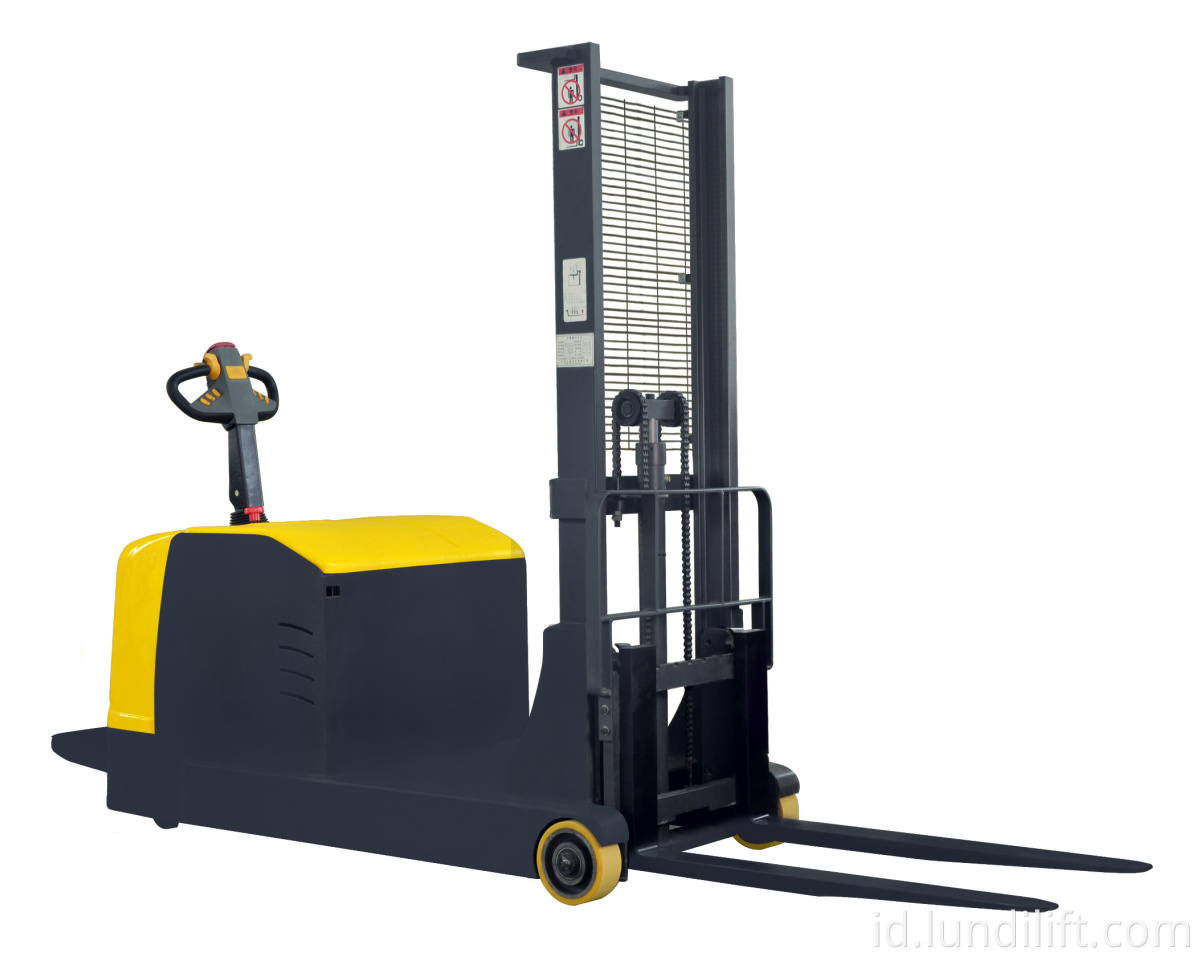

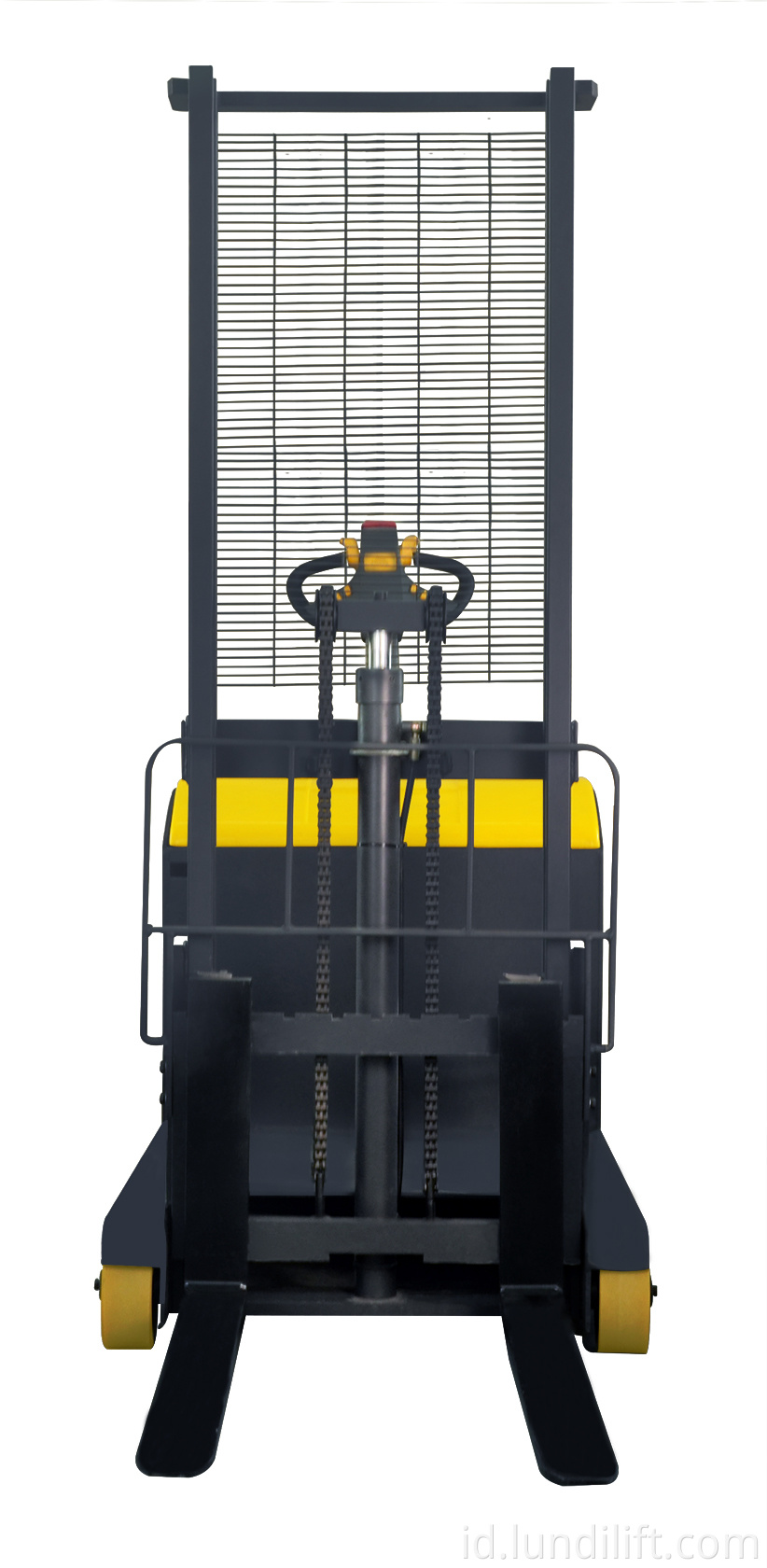

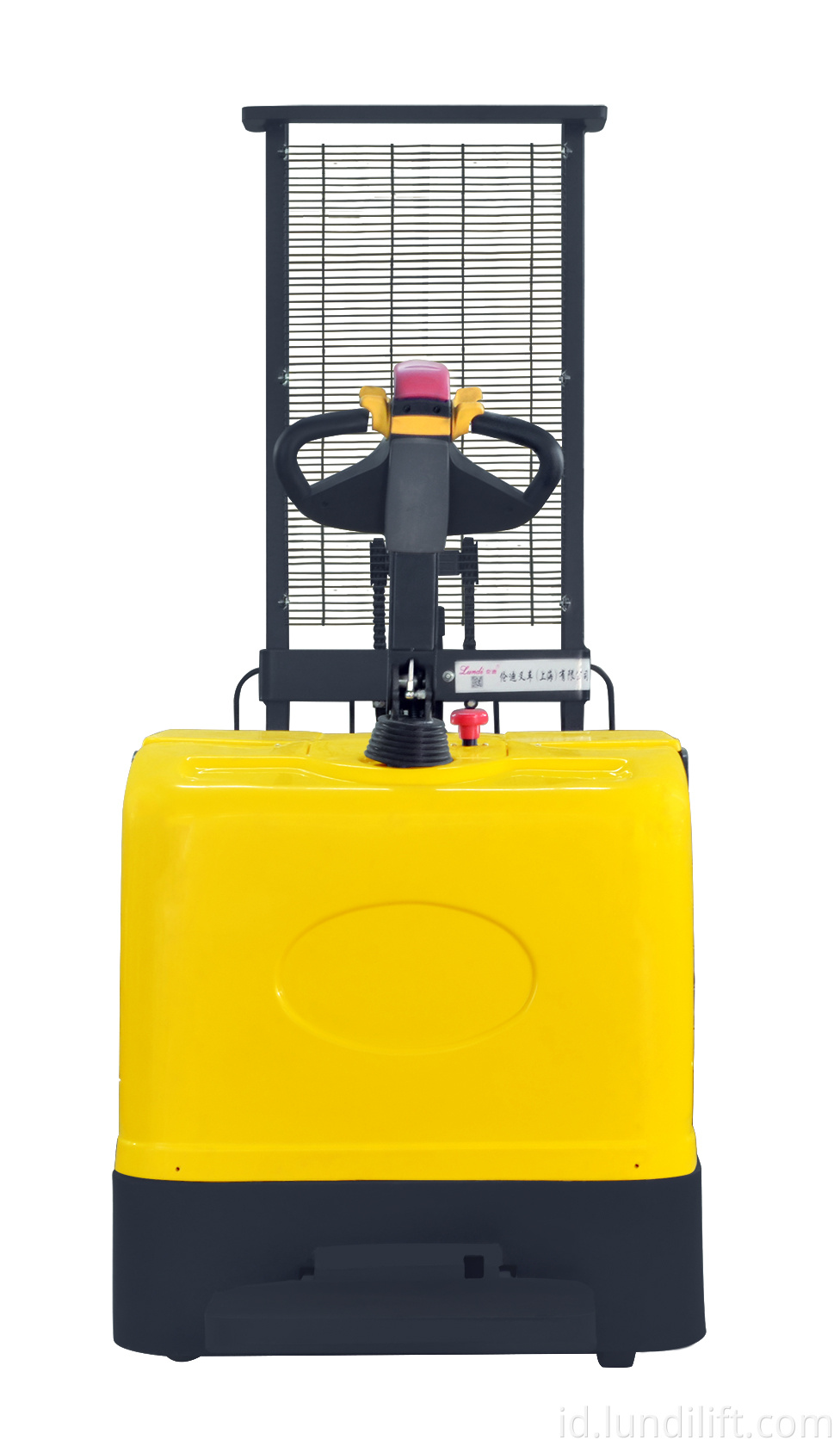

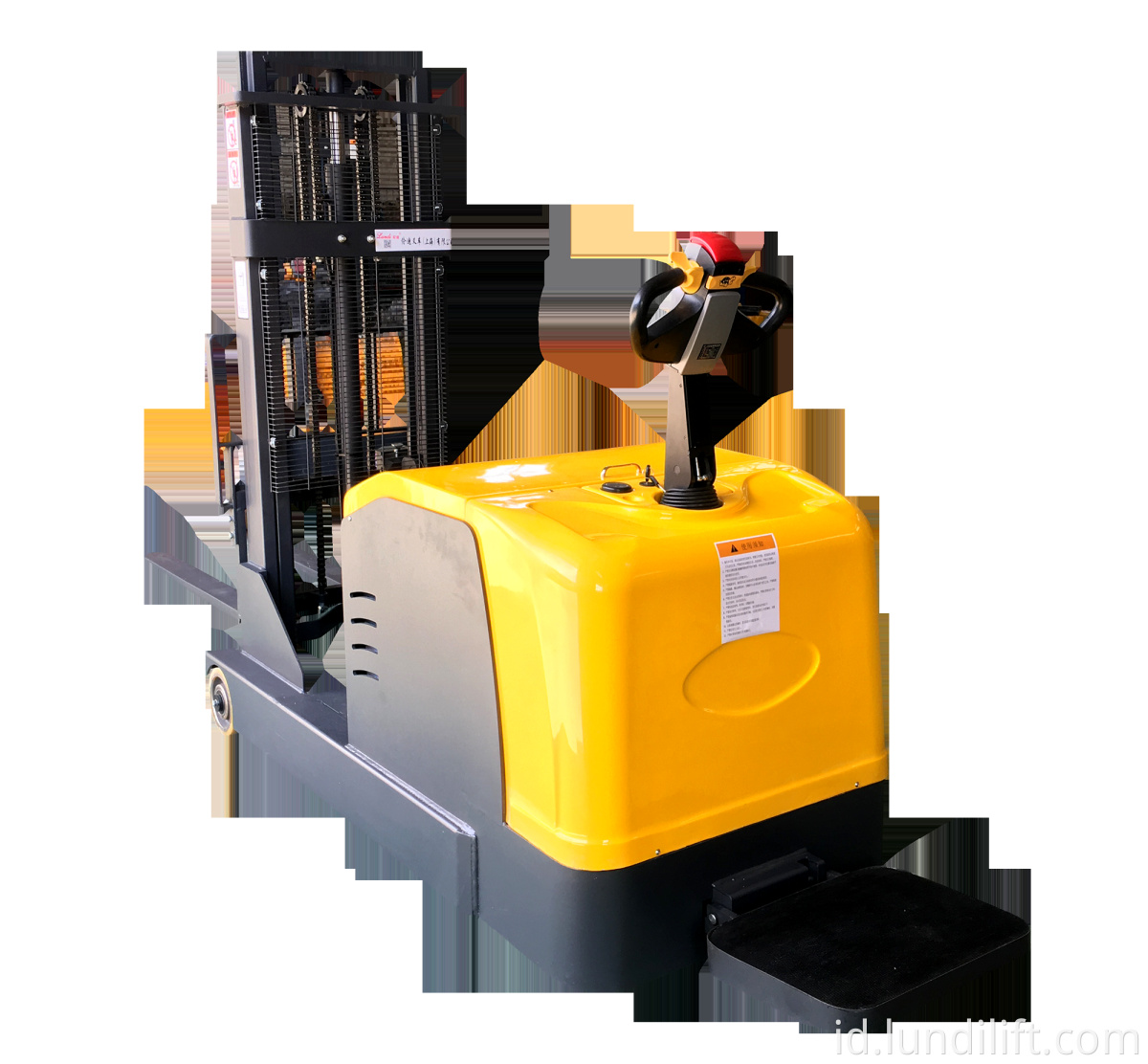

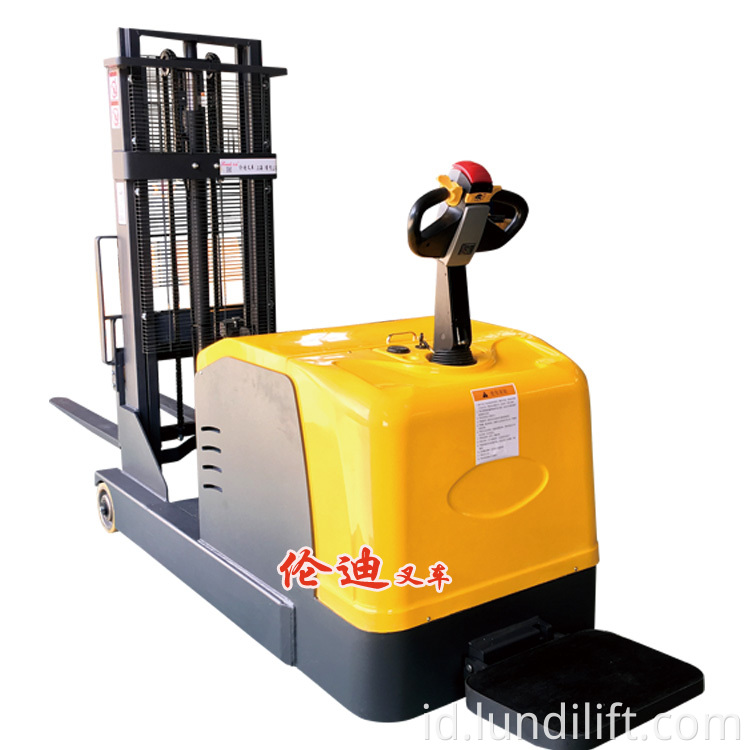

Penumpukan Listrik Penuh (Jenis Mengemudi Stand-On)
Jaga status mengemudi standar dari penumpukan semua-listrik. Ketika garpu mengemudi dari tanah, garpu 10-20 cm dari tanah. Ketika penumpuk semua-listrik berhenti, garpu diturunkan ke permukaan tanah untuk mengemudi; Saat bekerja pada kondisi jalan yang buruk, bobotnya berkurang secara tepat, dan kecepatan mengemudi penumpuk semua-listrik harus dikurangi.
|
Model
|
|
CPD-S15
|
|
Drive mode
|
|
Electric (battery)
|
|
Driving mode
|
|
Stand by
|
|
Rated load
|
Q (kg)
|
1000
|
|
Load centre distance
|
c (mm)
|
500
|
|
Wheel spacing
|
Y (mm)
|
1680
|
|
Weight (with battery)
|
kg
|
1855
|
|
Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels)
|
|
Polyamine ester wheel
|
|
Wheel size, front wheel
|
mm
|
Φ250×80
|
|
Wheel size, rear wheel
|
mm
|
Φ200X80
|
|
Wheel, front and rear number (x = drive wheel)
|
|
x/2 1
|
|
Rear wheel
|
b11(mm)
|
780
|
|
Lift height
|
h3(mm)
|
3500
|
|
Height of door frame lowered
|
h1(mm)
|
2340
|
|
Maximum vehicle height during operation
|
h4(mm)
|
4090
|
|
Lower height
|
h13(mm)
|
35
|
|
Overall length
|
l1(mm)
|
3100
|
|
Overall width
|
b1(mm)
|
880
|
|
Fork size
|
S/e/l (mm)
|
120/35/1070
|
|
Fork width
|
b5(mm)
|
200~660
|
|
Minimum clearance from ground
|
m2(mm)
|
50~110
|
|
Channel width, tray 1000 x1200(1200 cross fork placement)
|
Ast(mm)
|
3300
|
|
Channel width, pallet 800 x1200(1200 placed along fork)
|
Ast(mm)
|
3280
|
|
Turning radius
|
Wa(mm)
|
1510
|
|
Speed, full/no load
|
Km/h
|
4.5/5.2
|
|
Speed up, full load/ no load
|
m/s
|
0-0.12/0-0.2
|
|
Drop speed, full load/ no load
|
m/s
|
0-0.2/0-0.18(adjustable)
|
|
Climbing capacity, loading/unloading
|
%
|
May 8
|
|
Driving brake
|
|
Electromagnetic - regenerative braking
|
|
Drive motor power
|
kW
|
1.5(AC)
|
|
Lift motor power
|
kW
|
2.2
|
|
Battery voltage/ rated capacity
|
V/Ah
|
24V /130A/210A /24 A 0
|
|
Driver's Ear Noise Level DIN12053
|
dB (A)
|
≤70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
