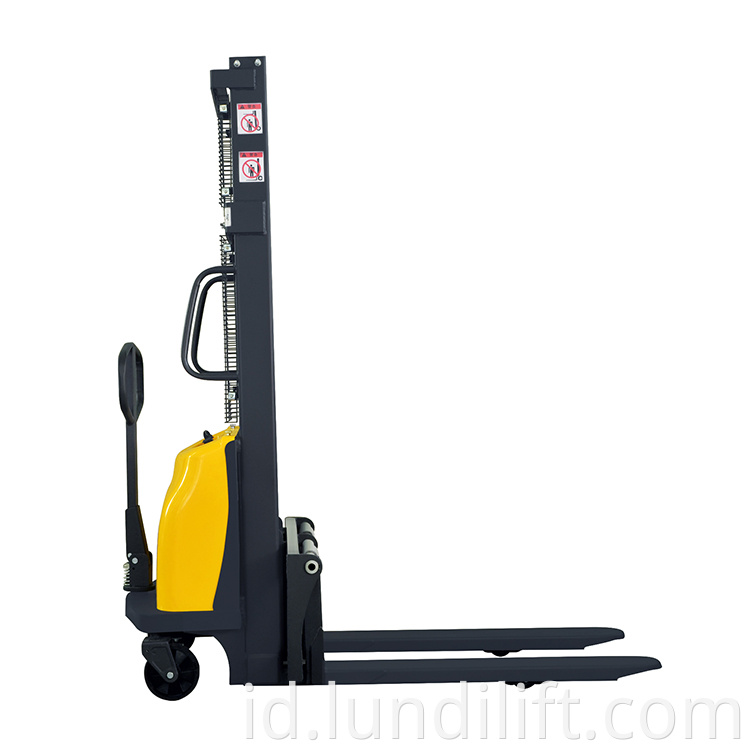

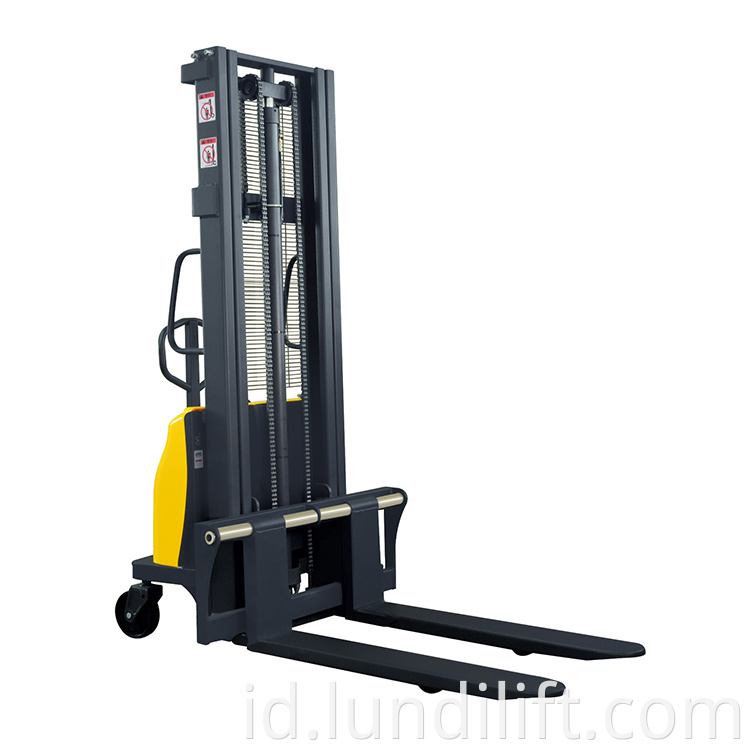

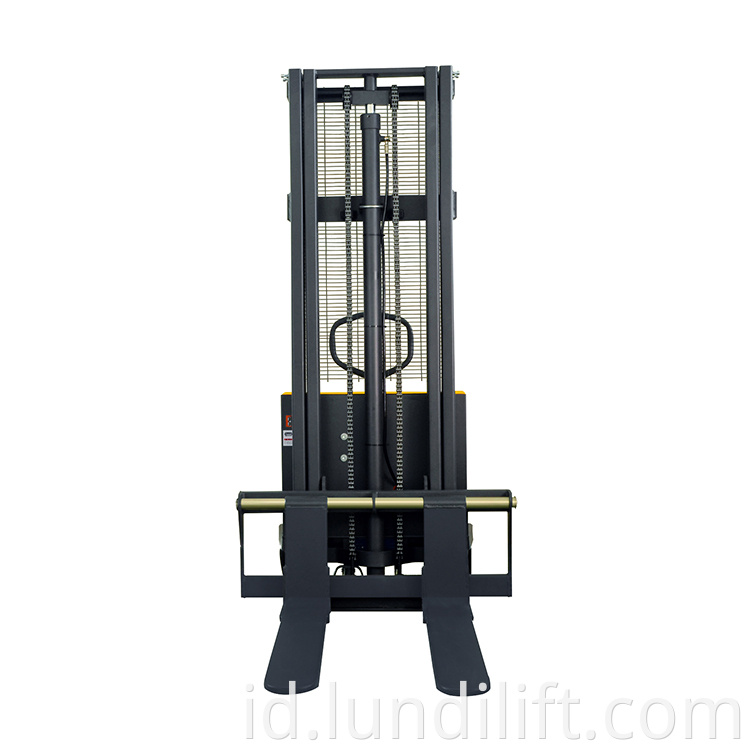

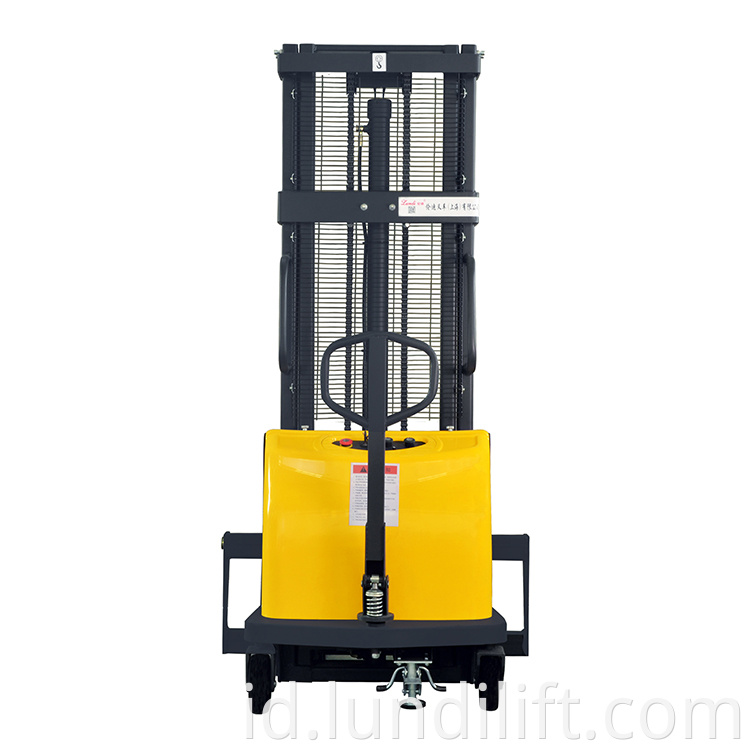

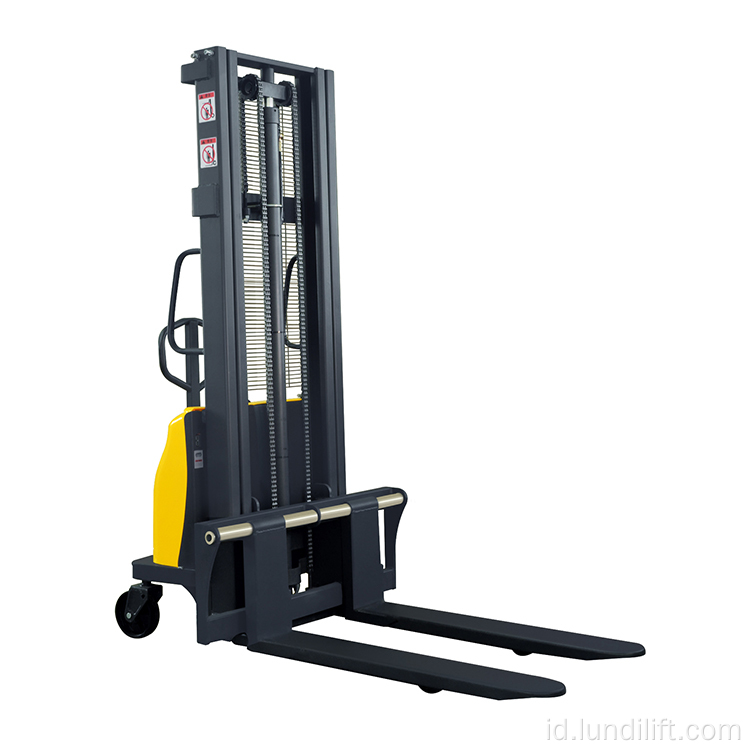

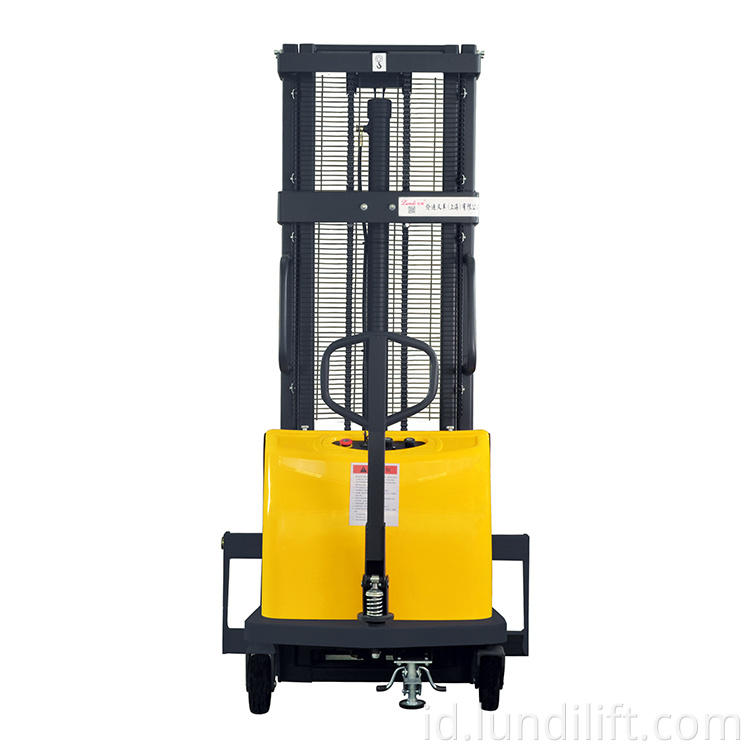

580kg 1.5ton 4m Stacker berjalan semi-listrik dengan
$9891-4 Piece/Pieces
$9795-9 Piece/Pieces
$959≥10Piece/Pieces
Jenis pembayaran: | D/A,D/P,T/T,Western Union |
Inkoterm: | FOB,EXW |
Transportasi: | Ocean,Land |
Pelabuhan: | SHANGHAI,QINGDAO,TIANJING |
$9891-4 Piece/Pieces
$9795-9 Piece/Pieces
$959≥10Piece/Pieces
Jenis pembayaran: | D/A,D/P,T/T,Western Union |
Inkoterm: | FOB,EXW |
Transportasi: | Ocean,Land |
Pelabuhan: | SHANGHAI,QINGDAO,TIANJING |
Merek: Lundi
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Condition: New
Brand Name: LunDI
Power Souce: Ac Motor
Min. Lifting Height: 90mm
Overall Dimensions: 50*160*1100 S/e/l (mm)
Warranty: 1 Year
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Komponen Inti: Bejana tekan, Motor, lain, Bantalan, Gigi, Pompa, Gearbox, Mesin
Model: BDD15
Working Mode: Semi-Electric
Weight(with Battery): 580kg
Lift Height: 4000mm
Overall Length: 1860mm
Overall Width: 800mm
Drivering Control System: AC
Masa Garansi: 1 tahun
After Warranty Service: Online Support
Local Service Location: None
After-sales Service Provided: Online Support
Industri Yang Berlaku: Hotel, Toko Garmen, Toko Bahan Bangunan, Bengkel Mesin, Pabrik Manufaktur, Peternakan, Penggunaan Rumah, Eceran, Perusahaan periklanan, Energi & Pertambangan, Toko Makanan & Minuman
Layanan Di Luar Garansi: Dukungan teknis video
Status: Baru
Tempat Asal: Cina
Sumber Daya Listrik: Motor AC
Laporan Uji Mekanis: Disediakan
Inspeksi Pabrik Video: Disediakan
Jenis Pemasaran: Produk Biasa
Masa Garansi Komponen Inti: 1 tahun
Place Of Origin: Jiangsu, China
Fork Length: 1100 mm
Fork Width: 320-1030 mm
Fork Width: 320-1030mm
Certification: CE, CE
Menjual unit | : | Piece/Pieces |
Tipe paket | : | Film yang dibungkus, ekspor palet standar atau kotak kayu. Metode pengemasan spesifik dapat dibahas. |
Contoh pada gamba | : |
Model |
|
BDD15 |
Working mode |
|
Electric |
Driving mode |
|
Walkie |
Rated load |
Q (kg) |
1500 |
Load centre distance |
c (mm) |
500 |
Front suspension |
x (mm) |
745 |
Wheel spacing |
Y (mm) |
1200 |
Weight (with battery) |
kg |
580 |
Wheels |
|
nylon |
Wheel size, front wheel |
|
Φ180*50 |
Wheel size, rear wheel |
|
Φ80×70 |
Wheel, front and rear number (x = drive wheel) |
|
2/2 |
Front wheel |
b10(mm) |
690 |
Rear wheel |
b11(mm) |
410/525 |
Lift height |
h1(mm) |
4000 |
Height of door frame retracted |
h3(mm) |
2590 |
Maximum height of gantry during operation |
h4(mm) |
4500 |
Lower height |
h13(mm) |
90 |
Overall length |
l1(mm) |
1860 |
Length of fork |
l2(mm) |
1100 |
Overall width |
b1(mm) |
800 |
Fork size |
S/e/l (mm) |
50×160×1100 |
Fork width |
b5(mm) |
320-1030 |
Distance center off clearance |
m2(mm) |
40 |
Channel width, tray 1000 x1200(1200 cross fork placement) |
Ast(mm) |
2305 |
Channel width, pallet 800 x1200(1200 placed along fork) |
Ast(mm) |
2258 |
Turning radius |
Wa(mm) |
1425 |
Speed up, full load/ no load |
m/s |
0.08/0.1 |
Drop speed, full load/ no load |
m/s |
0.15/0.12 |
Driving brake |
|
Mechanical braking |
Lift motor power |
kW |
2.2 |
Battery voltage/ rated capacity |
V/Ah |
12/120 |
Battery weight |
Kg |
43 |
Driver's Ear Noise Level DIN12053 |
dB (A) |
≤70 |
T1: Apakah Anda sebuah pabrik?
A1: Tentu saja.Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
