$54891-2 Piece/Pieces
$54793-5 Piece/Pieces
$5459≥6Piece/Pieces
| Jenis pembayaran: | D/A,D/P,T/T,Western Union |
| Inkoterm: | FOB |
| Transportasi: | Land,Ocean |
| Pelabuhan: | SHANGHAI,TIANJING,QINGDAO |
Merek: Lundi
Industri Yang Berlaku: Toko Bahan Bangunan, Pabrik Pabrikan, Penggunaan Rumah, Lainnya, Hotel, Toko Garmen, Toko Bahan Bangunan, Bengkel Mesin, Pabrik Manufaktur, Peternakan, Penggunaan Rumah, Eceran, Perusahaan periklanan, Toko Makanan & Minuman, Energi & Pertambangan
Lokasi Showroom: Tidak ada
Kondisi: Baru
Nama Merk: Lundi
Power Souce: MOTOR
Jaminan: 1 tahun
Laporan Tes Mesin: Asalkan
Video Keluar-inspeksi: Asalkan
Garansi Komponen Inti: Lainnya
Komponen Inti: Motor, Bejana tekan, lain, Bantalan, Gigi, Pompa, Gearbox, Mesin
Mode Drive: Listrik
Mencapai Stroke (mm): 500
Berat (dengan Baterai): 2070
Tinggi Angkat: 4500
Panjang Keseluruhan: 2460
Lebar Keseluruhan: 1000
Sistem Kontrol Pengemudi: Ac
Masa Garansi: 1 tahun
Setelah Layanan Garansi: Dukungan online
Lokasi Layanan Lokal: Tidak ada
Layanan Purna Jual Disediakan: Dukungan online
Layanan Di Luar Garansi: Dukungan teknis video
Status: Baru
Tempat Asal: Cina, Jiangsu, Cina
Sumber Daya Listrik: Motor AC
Laporan Uji Mekanis: Disediakan
Inspeksi Pabrik Video: Disediakan
Jenis Pemasaran: Produk Biasa
Masa Garansi Komponen Inti: 1 tahun
Lebar Garpu: 200-680
Sertifikasi: Ce
| Menjual unit | : | Piece/Pieces |
| Tipe paket | : | Film yang dibungkus, ekspor palet standar atau kotak kayu. Metode pengemasan spesifik dapat dibahas. |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|

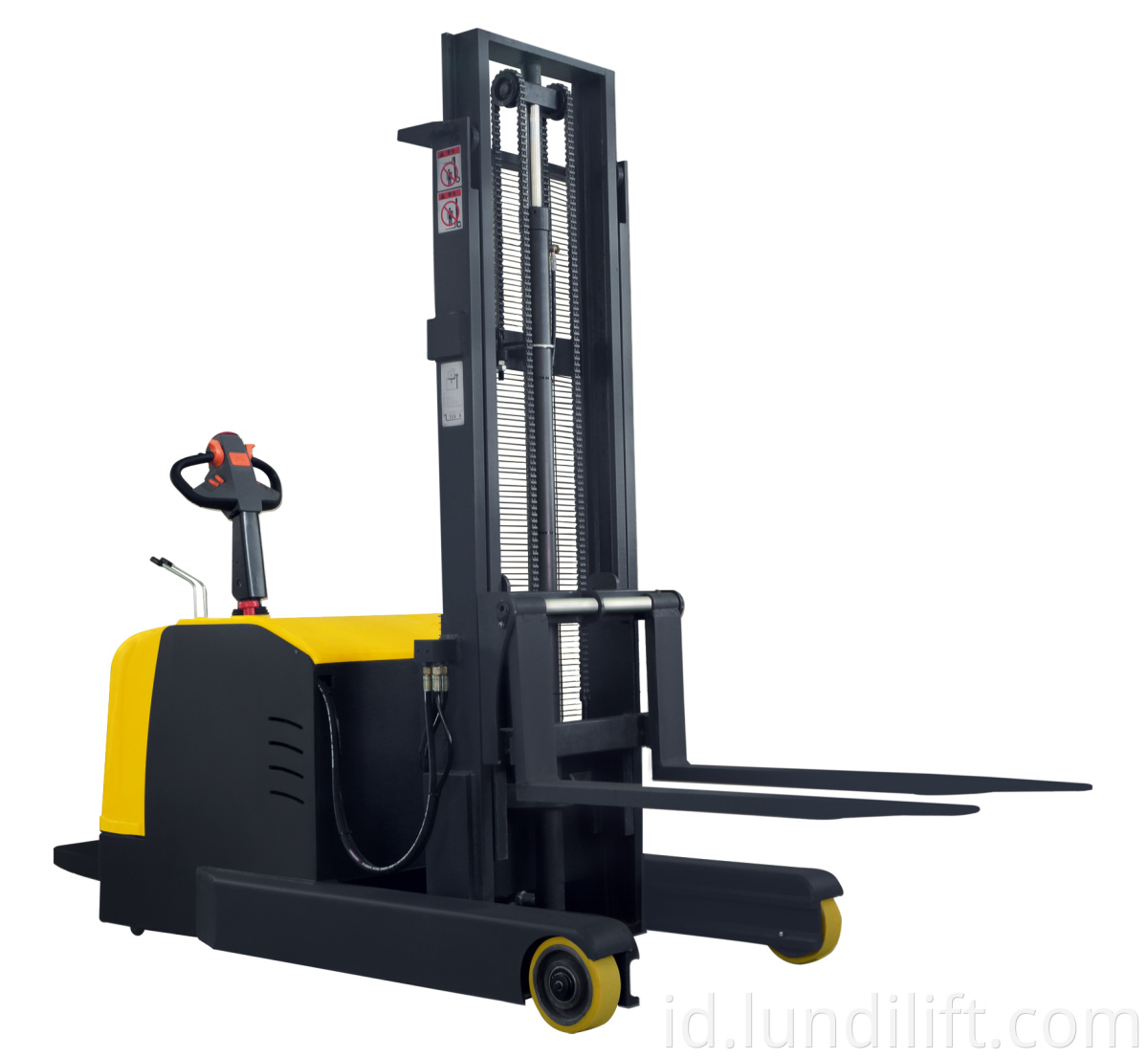

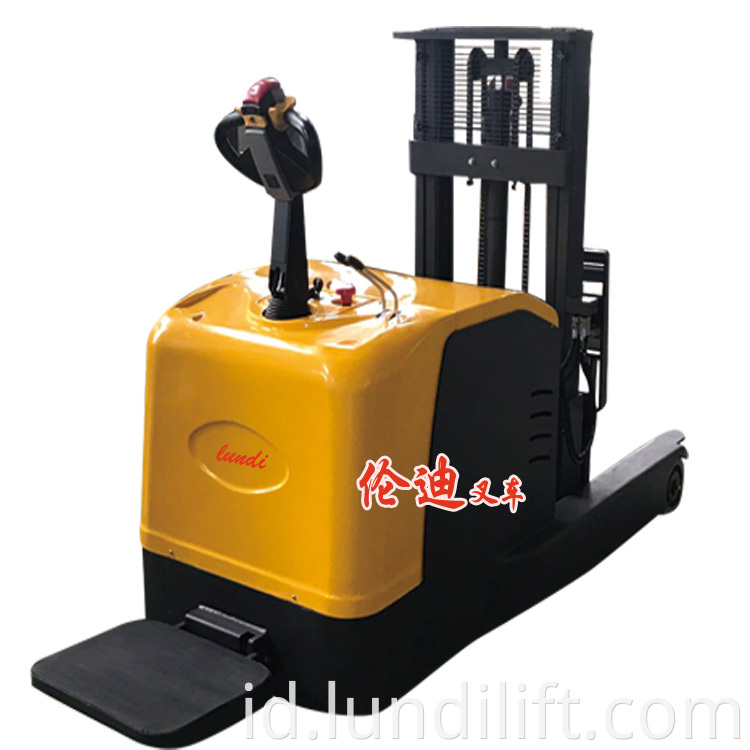

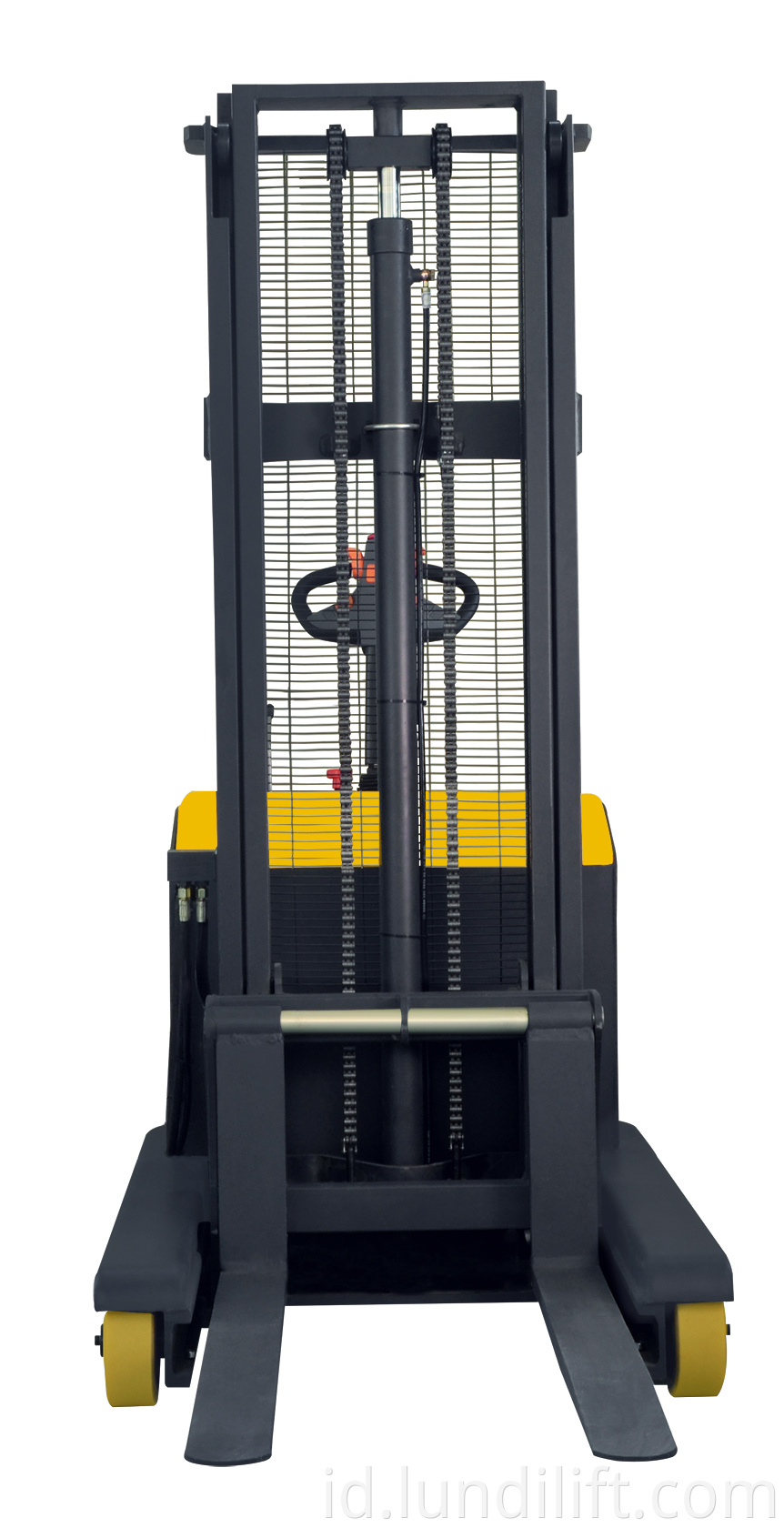

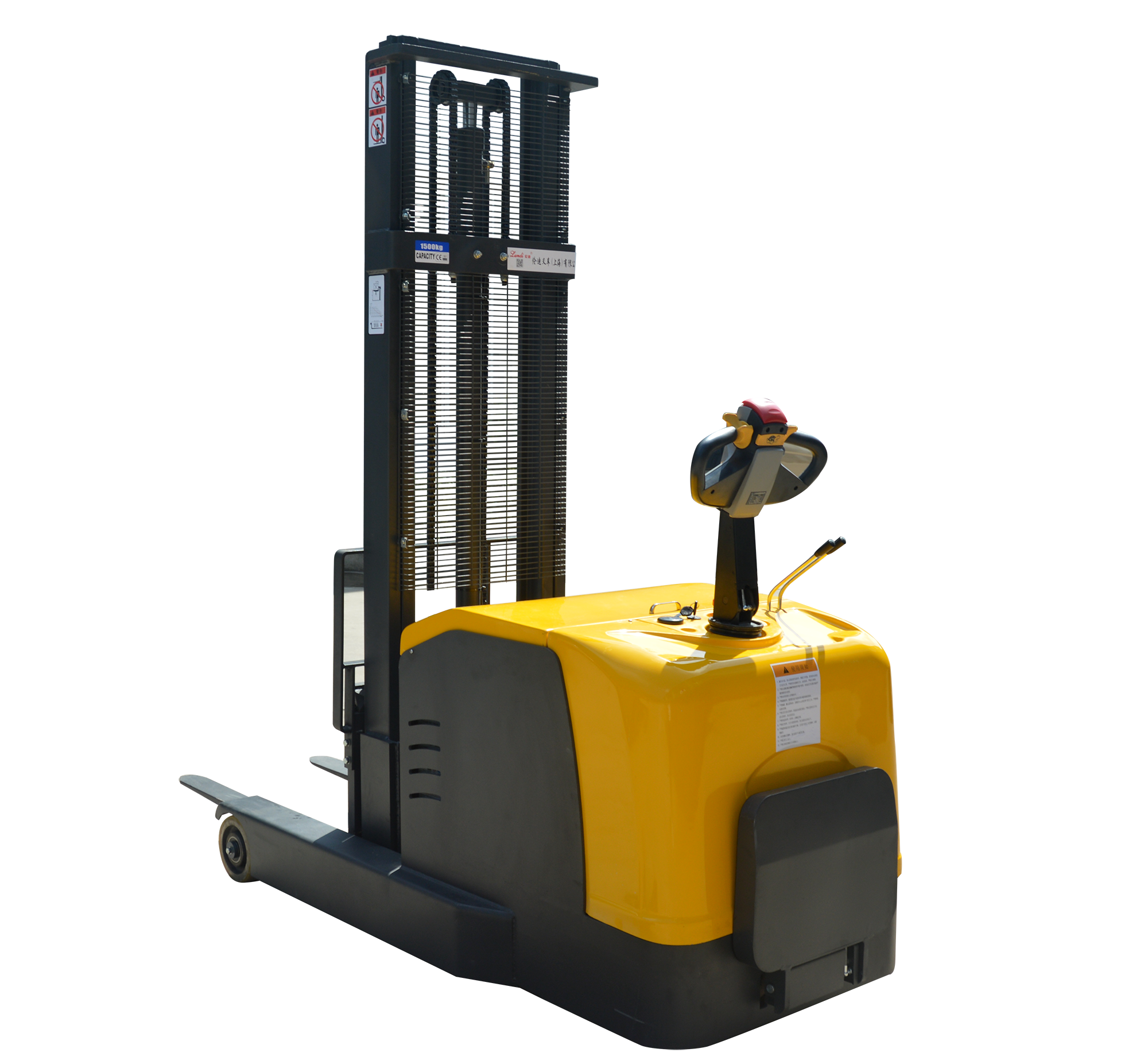

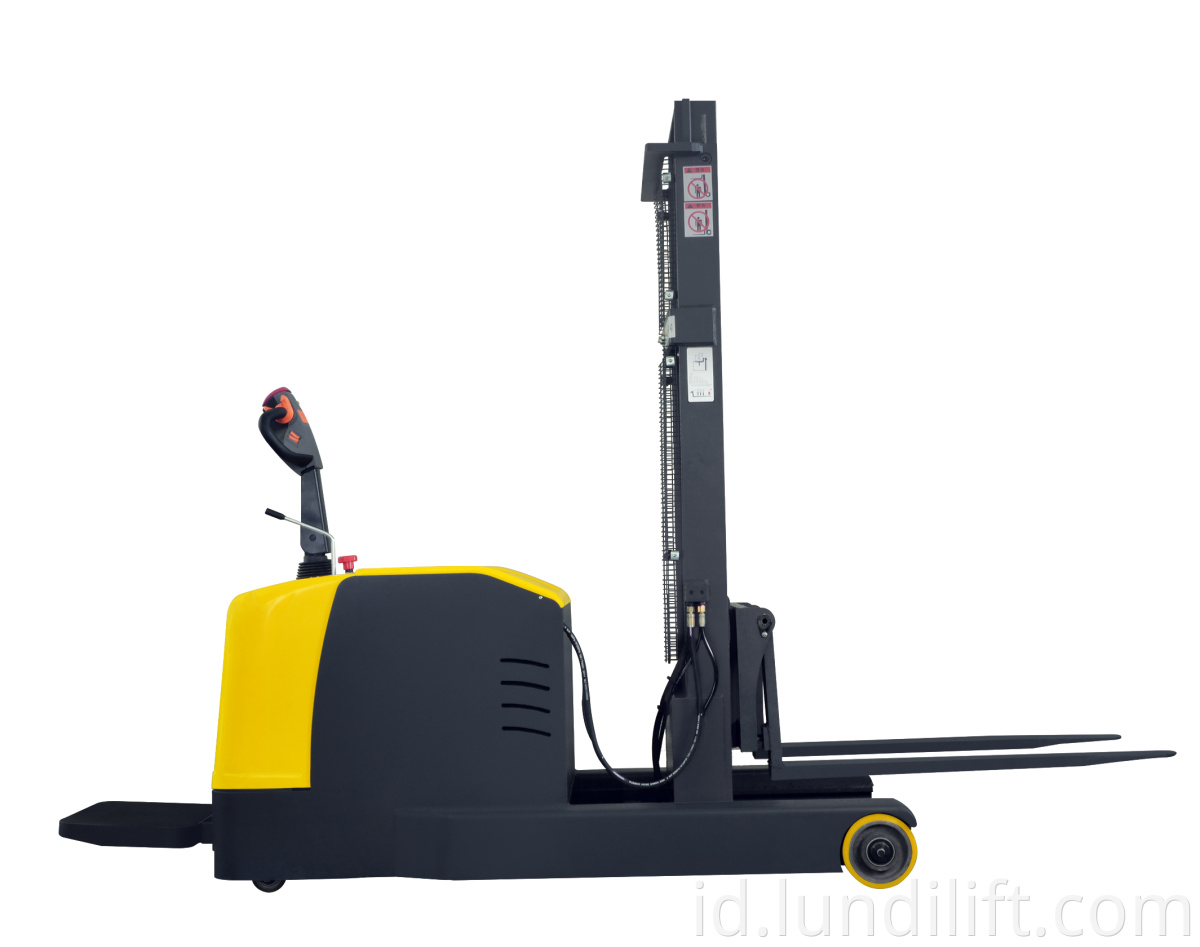

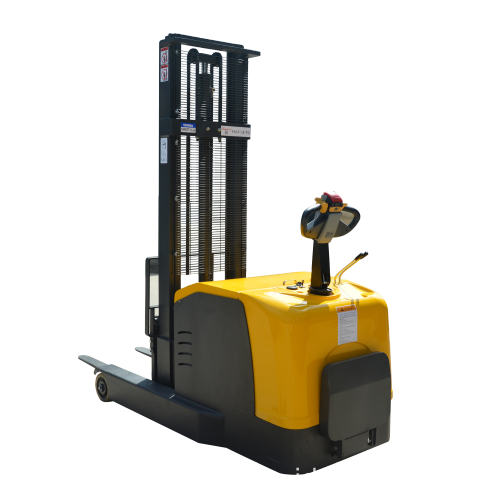

Model
|
|
CQD15
|
|
Drive mode
|
|
Electric (battery)
|
|
Driving mode
|
|
Stand by
|
|
Rated load
|
Q (kg)
|
1500
|
|
Load centre distance
|
c (mm)
|
500
|
|
Reach Stroke
|
l3(mm)
|
500
|
|
Wheel spacing
|
Y (mm)
|
1280
|
|
Weight (with battery)
|
kg
|
2070
|
|
Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels)
|
|
Polyamine ester wheel
|
|
Wheel size, front wheel
|
mm
|
Φ250×80
|
|
Wheel size, rear wheel
|
mm
|
Φ210X85
|
|
Wheel, front and rear number (x = drive wheel)
|
|
x/2 1
|
|
Rear wheel
|
b11(mm)
|
895
|
|
Lift height
|
h14(mm)
|
4500
|
|
Height of door frame retracted
|
h15(mm)
|
2090
|
|
Height of gantry during operation
|
l2(mm)
|
5090
|
|
Lower height
|
h13(mm)
|
50
|
|
Overall length
|
l1(mm)
|
2460
|
|
Overall width
|
b1(mm)
|
1000
|
|
Fork size
|
S/e/l (mm)
|
100/35/1070
|
|
Fork width
|
b5(mm)
|
200~680
|
|
Minimum clearance from ground
|
m2(mm)
|
50~110
|
|
Channel width, tray 1000 x1200(1200 cross fork placement)
|
Ast(mm)
|
2600
|
|
Channel width, pallet 800 x1200(1200 placed along fork)
|
Ast(mm)
|
2580
|
|
Turning radius
|
Wa(mm)
|
1600
|
|
Speed, full/no load
|
Km/h
|
4.5/5.2
|
|
Speed up, full load/ no load
|
m/s
|
0-0.12/0-0.2
|
|
Drop speed, full load/ no load
|
m/s
|
0-0.2/0-0.18(adjustable)
|
|
Climbing capacity, loading/unloading
|
%
|
May 8
|
|
Driving brake
|
|
Electromagnetic - regenerative braking
|
|
Drive motor power
|
kW
|
1.5(AC)
|
|
Lift motor power
|
kW
|
2.2
|
|
Battery voltage/ rated capacity
|
V/Ah
|
24/210
|
|
Battery weight
|
Kg
|
180
|
|
Diversion
|
|
Mechanical steering
|
|
Driver's Ear Noise Level DIN12053
|
dB (A)
|
≤70
|
