$43491-4 Piece/Pieces
$43395-9 Piece/Pieces
$4319≥10Piece/Pieces
| Jenis pembayaran: | D/A,D/P,T/T,Western Union |
| Inkoterm: | FOB |
| Transportasi: | Ocean,Land |
| Pelabuhan: | TIANJING,QINGDAO,SHANGHAI |
Merek: Lundi
Industri Yang Berlaku: Hotel, toko garmen, toko bahan bangunan, toko perbaikan mesin, pabrik manufaktur, pabrik makanan & minuman, peternakan, ritel, toko makanan, toko cetak, pekerjaan konstruksi, energi & pertambangan, toko makanan & minuman, perusahaan periklanan,, Hotel, Toko Garmen, Toko Bahan Bangunan, Bengkel Mesin, Pabrik Manufaktur, Peternakan, Penggunaan Rumah, Eceran, Energi & Pertambangan, Toko Makanan & Minuman, Perusahaan periklanan
Lokasi Showroom: Tidak ada
Kondisi: Baru
Nama Merk: Lundi
Power Souce: Motor AC
Min. Tinggi Pengangkat: 90mm
Dimensi Keseluruhan: 100/35/1070 S/E/L (mm)
Jaminan: 1 tahun
Laporan Tes Mesin: Asalkan
Video Keluar-inspeksi: Asalkan
Garansi Komponen Inti: 1 tahun
Komponen Inti: Bejana tekan, Motor, lain, Bantalan, Gigi, Pompa, Gearbox, Mesin
Model: CQD20
Mode Mengemudi: Listrik
Mencapai Stroke (mm): 500mm
Berat (dengan Baterai): 2080kg
Tinggi Angkat: 3000mm
Panjang Keseluruhan: 2460mm
Sistem Kontrol Pengemudi: Ac
Masa Garansi: 1 tahun
Setelah Layanan Garansi: Dukungan online
Lokasi Layanan Lokal: Tidak ada
Layanan Purna Jual Disediakan: Dukungan online
Layanan Di Luar Garansi: Dukungan teknis video
Status: Baru
Tempat Asal: Cina, Jiangsu, Cina
Sumber Daya Listrik: Motor AC
Laporan Uji Mekanis: Disediakan
Inspeksi Pabrik Video: Disediakan
Jenis Pemasaran: Produk Biasa
Masa Garansi Komponen Inti: 1 tahun
Panjang Garpu: 1100 mm
Lebar Garpu: 200 ~ 680 mm, 200-680mm
Sertifikasi: CE, CE
| Menjual unit | : | Piece/Pieces |
| Tipe paket | : | Film yang dibungkus, ekspor palet standar atau kotak kayu. Metode pengemasan spesifik dapat dibahas. |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

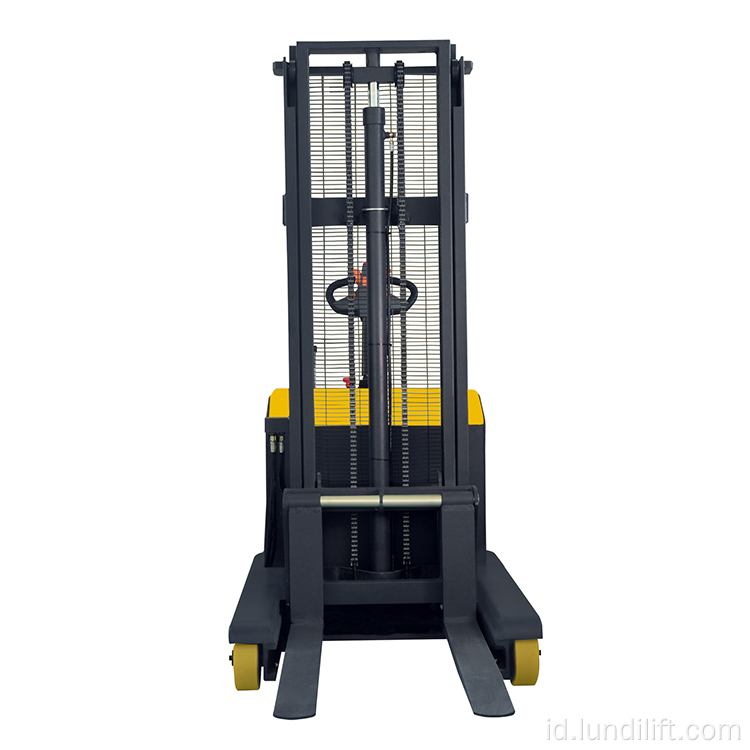

| Model | CQD20 | |
| Drive mode | Electric (battery) | |
| Driving mode | Stand by | |
| Rated load | Q (kg) | 2000 |
| Load centre distance | c (mm) | 500 |
| Reach Stroke | l3(mm) | 500 |
| Wheel spacing | Y (mm) | 1280 |
| Weight (with battery) | kg | |
| Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels) | Polyamine ester wheel | |
| Wheel size, front wheel | mm | Φ250×80 |
| Wheel size, rear wheel | mm | Φ210X85 |
| Wheel, front and rear number (x = drive wheel) | x/2 1 | |
| Rear wheel | b11(mm) | 895 |
| Lift height | h14(mm) | 3000 |
| Height of door frame retracted | h15(mm) | 2090 |
| Height of gantry during operation | l2(mm) | 3590 |
| Lower height | h13(mm) | 50 |
| Overall length | l1(mm) | 2460 |
| Overall width | b1(mm) | 1000 |
| Fork size | S/e/l (mm) | 100/35/1070 |
| Fork width | b5(mm) | 200~680 |
| Minimum clearance from ground | m2(mm) | 50~110 |
| Channel width, tray 1000 x1200(1200 cross fork placement) | Ast(mm) | 2600 |
| Channel width, pallet 800 x1200(1200 placed along fork) | Ast(mm) | 2580 |
| Turning radius | Wa(mm) | 1600 |
| Speed, full/no load | Km/h | 4.5/5.2 |
| Speed up, full load/ no load | m/s | 0-0.12/0-0.2 |
| Drop speed, full load/ no load | m/s | 0-0.2/0-0.18(adjustable) |
| Climbing capacity, loading/unloading | % | May 8 |
| Driving brake | Electromagnetic - regenerative braking | |
| Drive motor power | kW | 1.5(AC) |
| Lift motor power | kW | 2.2 |
| Battery voltage/ rated capacity | V/Ah | 24/210 |
| Battery weight | Kg | 180 |
| Diversion | Mechanical steering | |
| Driver's Ear Noise Level DIN12053 | dB (A) |
≤70 |
