$11001-1 Piece/Pieces
$10802-15 Piece/Pieces
$1070≥16Piece/Pieces
| Jenis pembayaran: | D/A,D/P,T/T,Western Union |
| Inkoterm: | FOB,EXW |
| Transportasi: | Ocean,Land |
| Pelabuhan: | SHANGHAI,NINGBO,TIANJING |
Merek: Lundi
Industri Yang Berlaku: Toko Bahan Bangunan, Pabrik Pabrikan, Penggunaan Rumah, Lainnya, Hotel, Toko Garmen, Toko Bahan Bangunan, Bengkel Mesin, Pabrik Manufaktur, Toko Makanan & Minuman, Energi & Pertambangan, Perusahaan periklanan, Peternakan, Penggunaan Rumah, Eceran
Lokasi Showroom: Tidak ada
Kondisi: Baru
Nama Merk: Lundi
Power Souce: MOTOR
Jaminan: 1 tahun
Laporan Tes Mesin: Asalkan
Video Keluar-inspeksi: Asalkan
Garansi Komponen Inti: Lainnya
Komponen Inti: Motor, Bejana tekan, lain, Bantalan, Gigi, Pompa, Gearbox, Mesin
Model: BDD15
Mode Kerja: Semi-listrik
Berat (dengan Baterai): 580
Tinggi Angkat: 4000
Panjang Keseluruhan: 1860
Lebar Keseluruhan: 800
Sistem Kontrol Pengemudi: Ac
Masa Garansi: 1 tahun
Setelah Layanan Garansi: Dukungan online
Lokasi Layanan Lokal: Tidak ada
Layanan Purna Jual Disediakan: Dukungan online
Layanan Di Luar Garansi: Dukungan teknis video
Status: Baru
Tempat Asal: Cina, Jiangsu, Cina
Sumber Daya Listrik: Motor AC
Laporan Uji Mekanis: Disediakan
Inspeksi Pabrik Video: Disediakan
Jenis Pemasaran: Produk Biasa
Masa Garansi Komponen Inti: 1 tahun
Lebar Garpu: 320-1030
Sertifikasi: Ce
| Menjual unit | : | Piece/Pieces |
| Tipe paket | : | Film yang dibungkus, ekspor palet standar atau kotak kayu. Metode pengemasan spesifik dapat dibahas. |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|

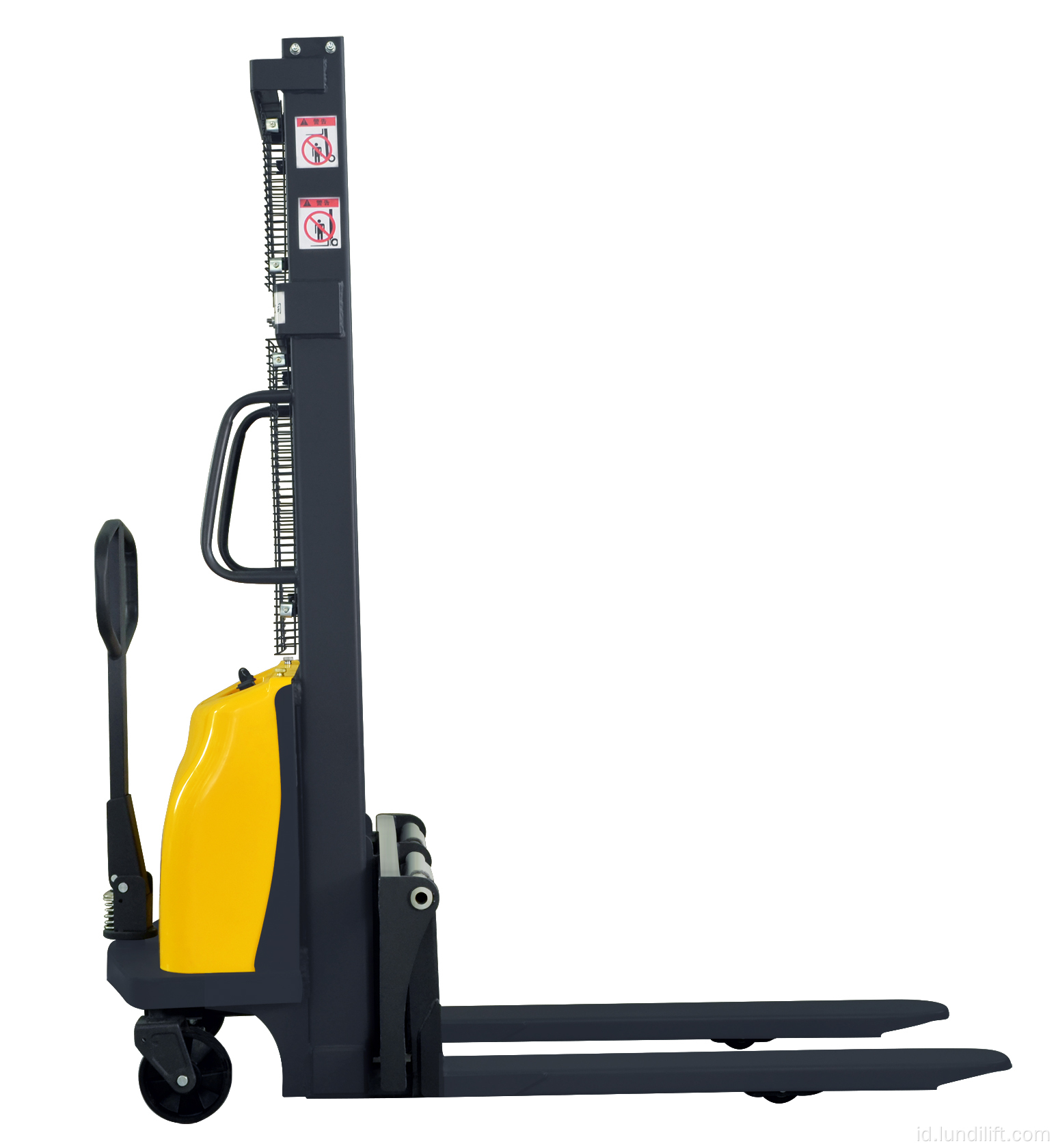

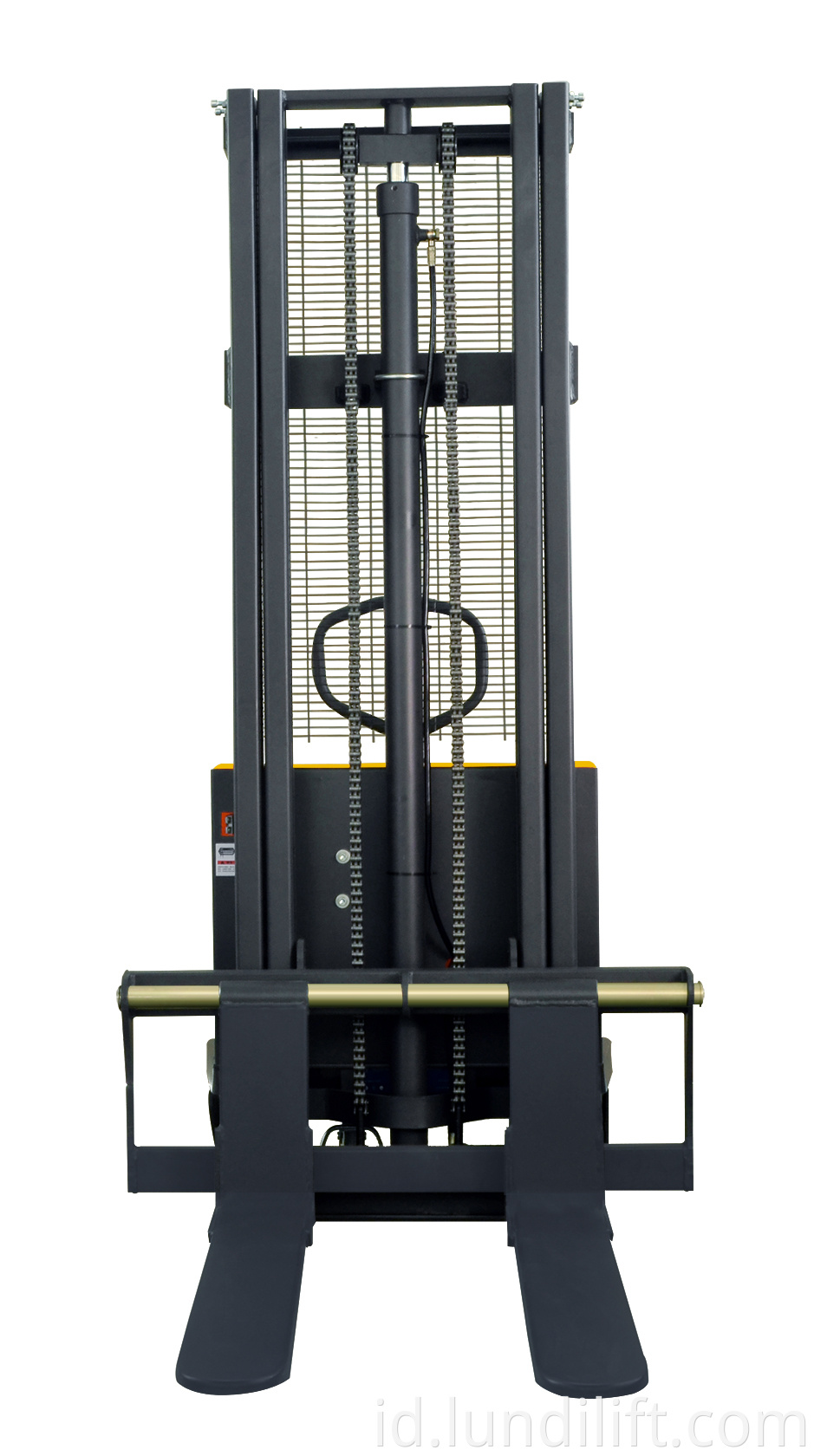

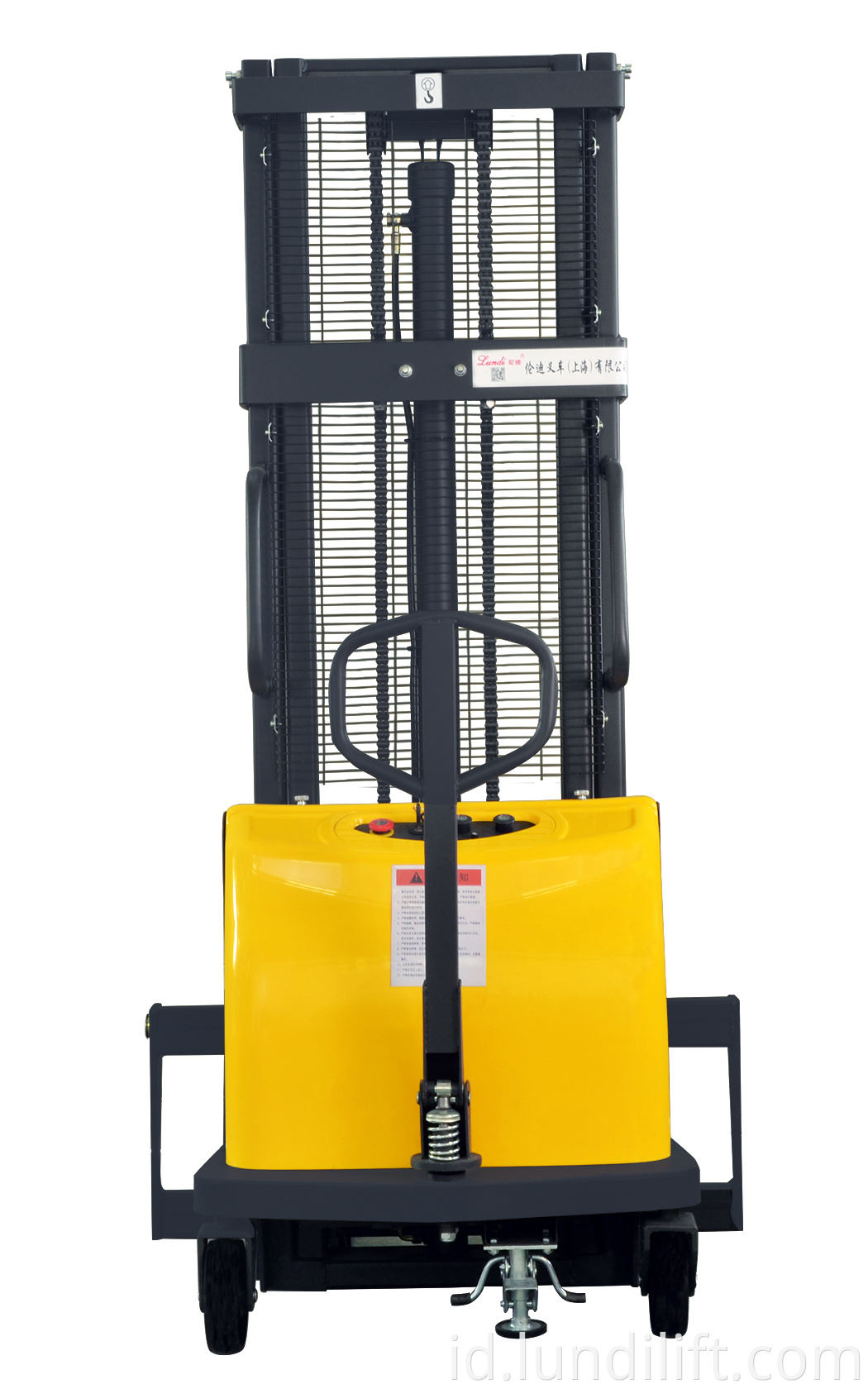

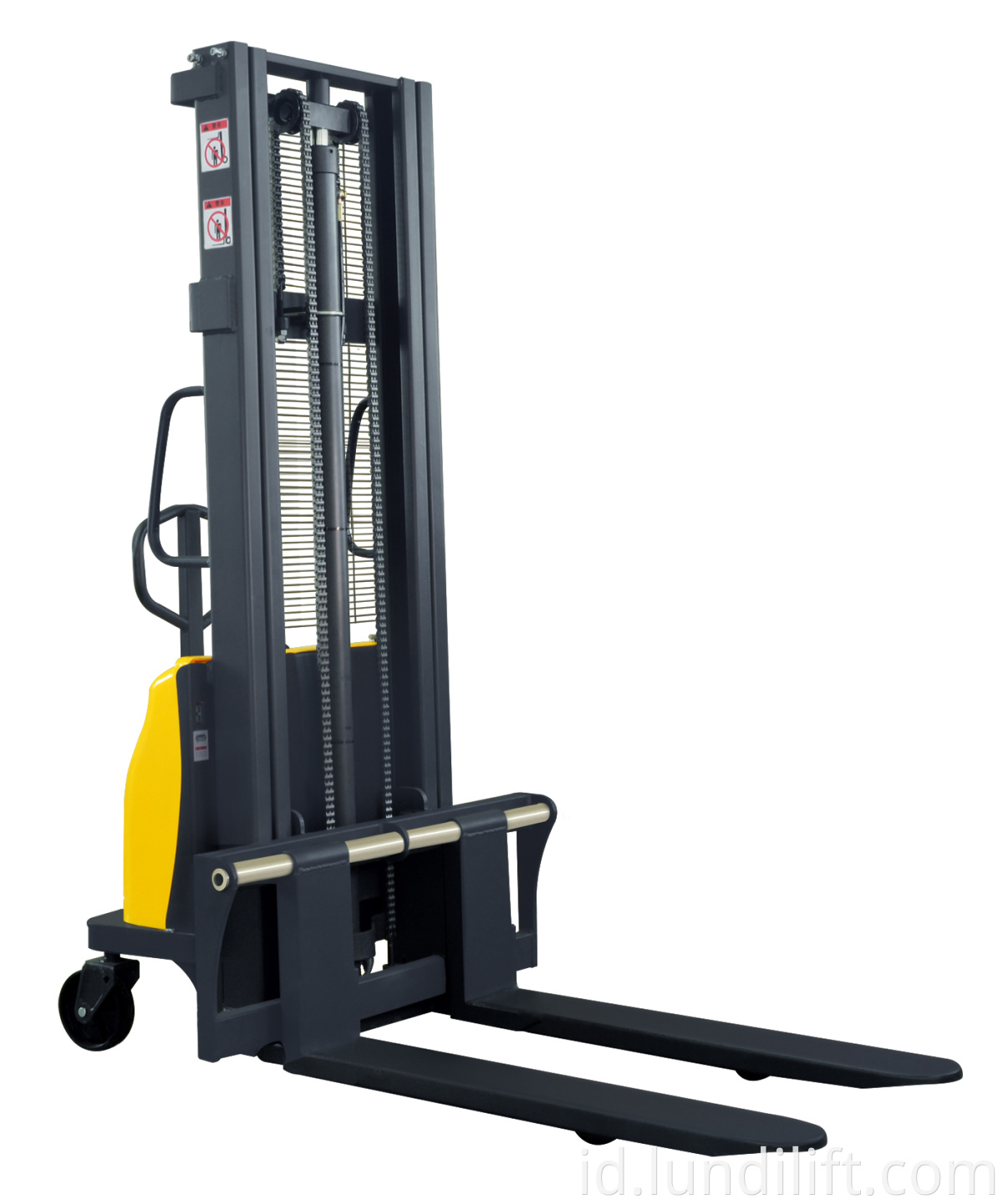

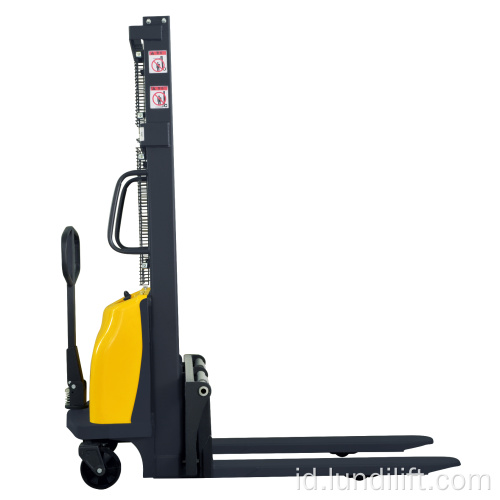

Semi-electric Stacker
|
|
|
||
|
Model
|
|
BDD15
|
||
|
Working mode
|
|
Electric
|
||
|
Driving mode
|
|
Walkie
|
||
|
Rated load
|
Q (kg)
|
1500
|
||
|
Load centre distance
|
c (mm)
|
500
|
||
|
Front suspension
|
x (mm)
|
745
|
||
|
Wheel spacing
|
Y (mm)
|
1200
|
||
|
Weight (with battery)
|
kg
|
580
|
||
|
Wheels
|
|
nylon
|
||
|
Wheel size, front wheel
|
|
Φ180*50
|
||
|
Wheel size, rear wheel
|
|
Φ80×70
|
||
|
Wheel, front and rear number (x = drive wheel)
|
|
2/2
|
||
|
Front wheel
|
b10(mm)
|
690
|
||
|
Rear wheel
|
b11(mm)
|
410/525
|
||
|
Lift height
|
h1(mm)
|
4000
|
||
|
Height of door frame retracted
|
h3(mm)
|
2590
|
||
|
Maximum height of gantry during operation
|
h4(mm)
|
4500
|
||
|
Lower height
|
h13(mm)
|
90
|
||
|
Overall length
|
l1(mm)
|
1860
|
||
|
Length of fork
|
l2(mm)
|
1100
|
||
|
Overall width
|
b1(mm)
|
800
|
||
|
Fork size
|
S/e/l (mm)
|
50×160×1100
|
||
|
Fork width
|
b5(mm)
|
320-1030
|
||
|
Distance center off clearance
|
m2(mm)
|
40
|
||
|
Channel width, tray 1000 x1200(1200 cross fork placement)
|
Ast(mm)
|
2305
|
||
|
Channel width, pallet 800 x1200(1200 placed along fork)
|
Ast(mm)
|
2258
|
||
|
Turning radius
|
Wa(mm)
|
1425
|
||
|
Speed up, full load/ no load
|
m/s
|
0.08/0.1
|
||
|
Drop speed, full load/ no load
|
m/s
|
0.15/0.12
|
||
|
Driving brake
|
|
Mechanical braking
|
||
|
Lift motor power
|
kW
|
2.2
|
||
|
Battery voltage/ rated capacity
|
V/Ah
|
12/120
|
||
|
Battery weight
|
Kg
|
43
|
||
|
Driver's Ear Noise Level DIN12053
|
dB (A)
|
≤70
|
||
Jiangsu Lundi Forklif Co.ltd. adalah peralatan logistik R&D dan pemasok produksi. Perusahaan memiliki teknologi tinggi
personel litbang teknis dan pra-penjualan yang kuat dan kelompok layanan purna jual. Peralatan perusahaan dapat memenuhi kebutuhan produksi berbagai truk palet, forklift listrik dan forklift non-standar
