$19991-19 Piece/Pieces
$198920-99 Piece/Pieces
$1979≥100Piece/Pieces
| Jenis pembayaran: | D/A,D/P,T/T,Western Union |
| Inkoterm: | FOB |
| Transportasi: | Ocean,Land |
| Pelabuhan: | SHANGHAI,NINGBO,TIANJING |
Model No: CDD-A
Merek: Lundi
Industri Yang Berlaku: Hotel, toko garmen, toko bahan bangunan, toko perbaikan mesin, pabrik manufaktur, pabrik makanan & minuman, penggunaan rumah, ritel, toko makanan, toko cetak, energi & penambangan, lainnya, Hotel, Toko Garmen, Toko Bahan Bangunan, Bengkel Mesin, Pabrik Manufaktur, Penggunaan Rumah, Peternakan, Eceran, Perusahaan periklanan, Energi & Pertambangan, Toko Makanan & Minuman
Lokasi Showroom: Tidak ada
Kondisi: Baru
Nama Merk: Lundi
Power Souce: MOTOR
Min. Tinggi Pengangkat: 90
Jaminan: 1 tahun
Laporan Tes Mesin: Asalkan
Video Keluar-inspeksi: Asalkan
Garansi Komponen Inti: Lainnya
Komponen Inti: Motor, Bejana tekan, lain, Bantalan, Gigi, Pompa, Gearbox, Mesin
Jalan Mengemudi: Listrik
Gaya Mengemudi: Berjalan
Jarak Pusat Beban: 500c (mm)
Roda: Roda poliuretan
Jalur Roda Depan: 886B10 (mm)
Jalur Roda Belakang: 525b11 (mm)
Tinggi Saat Diturunkan: 90h13 (mm)
Panjang Keseluruhan: 1760l1 (mm)
Lebar Tubuh: 800b1 (mm)
Lebar Luar Garpu: 690b5 (mm)
Setelah Layanan Garansi: Dukungan online
Lokasi Layanan Lokal: Tidak ada
Layanan Purna Jual Disediakan: Dukungan online
Layanan Di Luar Garansi: Dukungan teknis video
Status: Baru
Tempat Asal: Cina, Jiangsu, Cina
Sumber Daya Listrik: Motor AC
Masa Garansi: 1 tahun
Laporan Uji Mekanis: Disediakan
Inspeksi Pabrik Video: Disediakan
Jenis Pemasaran: Produk Biasa
Masa Garansi Komponen Inti: 1 tahun
Panjang Garpu: 1100
Lebar Garpu: 1300
Sertifikasi: ce
| Menjual unit | : | Piece/Pieces |
| Tipe paket | : | Film yang dibungkus, ekspor palet standar atau kotak kayu. Metode pengemasan spesifik dapat dibahas. |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

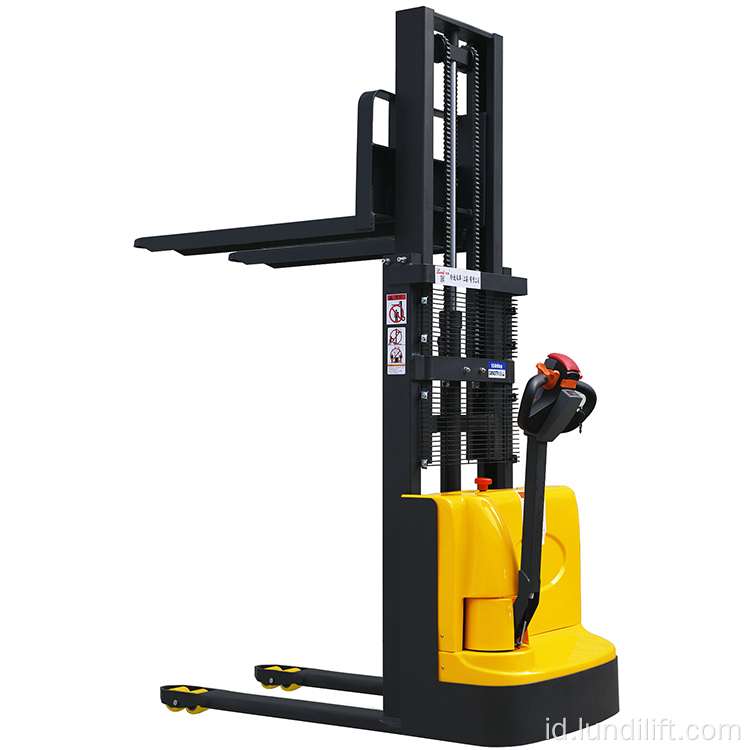

Penumpukan Listrik Penuh (Jenis Walkie)
Stackers banyak digunakan dalam lokakarya pabrik, gudang, pusat sirkulasi dan pusat distribusi, pelabuhan, stasiun, bandara, halaman barang, dll., Dan dapat memasuki kabin, gerbong dan wadah untuk memuat, membongkar, dan penanganan barang palet. Ini adalah peralatan yang sangat diperlukan untuk transportasi palet dan transportasi wadah. Walkie Stacker
|
model
|
|
CDD-A10/15
|
|
Drive way
|
|
Electric (battery)
|
|
Driving style
|
|
Walking
|
|
Rated load
|
Q(kg)
|
1000/1500
|
|
Load center distance
|
c(mm)
|
500
|
|
Weight (with battery)
|
kg
|
418/470/484/503/526
|
|
Wheels
|
|
Polyurethane wheel
|
|
Wheel size, front wheel
|
|
φ210×70
|
|
Wheel size, rear wheel
|
|
φ80×70
|
|
Additional wheel (size)
|
|
φ100×50
|
|
Wheels, number of front and rear (x = driving wheels)
|
|
1x+2/4
|
|
Front wheel track
|
b10(mm)
|
886
|
|
Rear wheel track
|
b11(mm)
|
525
|
|
Lifting height
|
h14(mm)
|
1600/2000/2500/3000/3500
|
|
Height when the mast is retracted
|
h15(mm)
|
2090/1590/1840/2090/2340
|
|
Height when lowered
|
h13(mm)
|
90
|
|
Overall length
|
l1(mm)
|
1760
|
|
Height of mast during operation
|
l2(mm)
|
2090/2550/3050/3550/4050
|
|
Body width
|
b1(mm)
|
1400
|
|
Fork size
|
S/e/l(mm)
|
60/170/1100
|
|
Outer width of fork
|
b5(mm)
|
1300
|
|
Ground clearance of wheelbase center
|
m2(mm)
|
40
|
|
Aisle width, pallet 1000x1200 (1200 placed across forks)
|
Ast(mm)
|
2200
|
|
Aisle width, pallet 800x1200 (1200 placed along the fork)
|
Ast(mm)
|
2100
|
|
Turning radius
|
Wa(mm)
|
1370
|
|
Driving speed, fully loaded/unloaded
|
Km/h
|
4/5.6
|
|
Lifting speed, fully loaded/unloaded
|
m/s
|
140
|
|
Lowering speed, full load/no load
|
m/s
|
101
|
|
Gradeability, loading/unloading
|
%
|
March 7
|
|
Service brake
|
|
Electromagnetic brake
|
|
Drive motor power
|
kW
|
0.75
|
|
Increase motor power
|
kW
|
2.2
|
|
Battery voltage/rated capacity
|
V/Ah
|
24V/80AH
|
|
Battery weight
|
Kg
|
26*2
|
|
Battery size (length X width X height)
|
mm
|
260*170*210
|
|
The noise level at the driver's ear complies with DIN12053
|
dB(A)
|
≤70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
